4 units listed
Decontamination XL.
Your reprocessing service, supported.
Your workflow, clearly separated.
Up to 180 endoscopes.Capacity for each day.
Designed for intensive daily use, with brochure-listed processing capacity of up to 180 endoscopes per day.

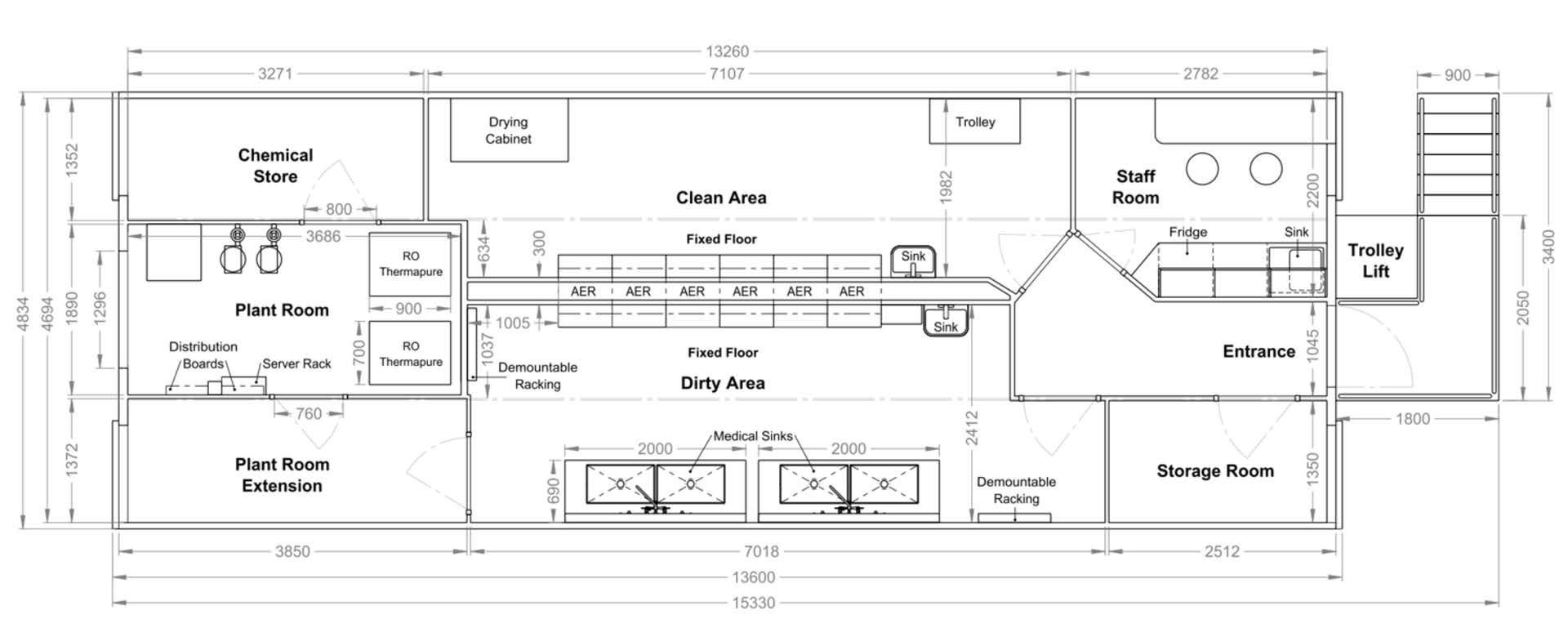

Clean and dirty zones.Separate spaces for reprocessing.
The dirty utility area operates under negative air pressure. The clean reprocessing and storage area operates under positive air pressure.
Ten air changes hourly.Across the clinical areas.
The brochure specifies HVAC delivering 10 air changes per hour throughout the clinical areas.
Room for the essentials.Space for the team.
Reception supports scope collection and drop-off, alongside dedicated chemical and consumables storage and a private staff rest room.
Plan the site services.Prepare for daily operation.
Two 125 A three-phase electrical connections, a 22 mm water feed and two 110 mm drainage outlets are required. Confirm site capacity before selecting a unit.

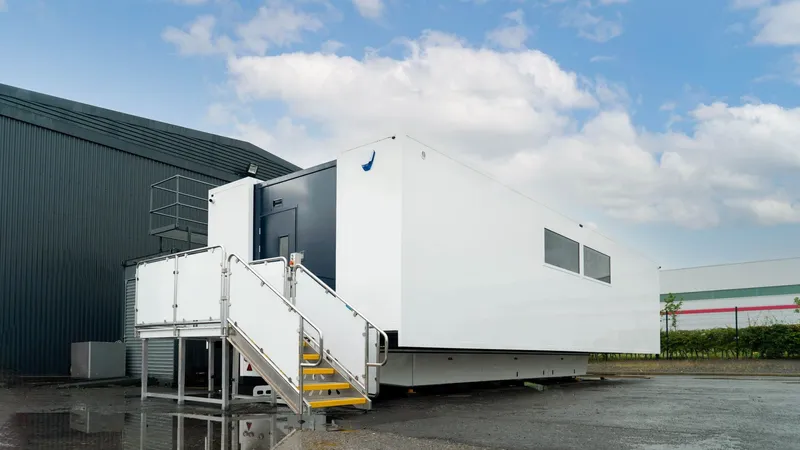

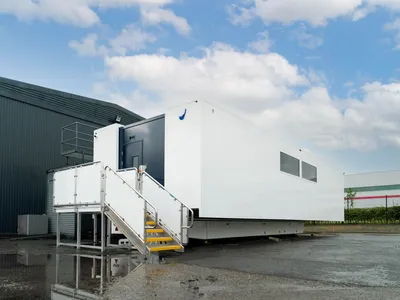

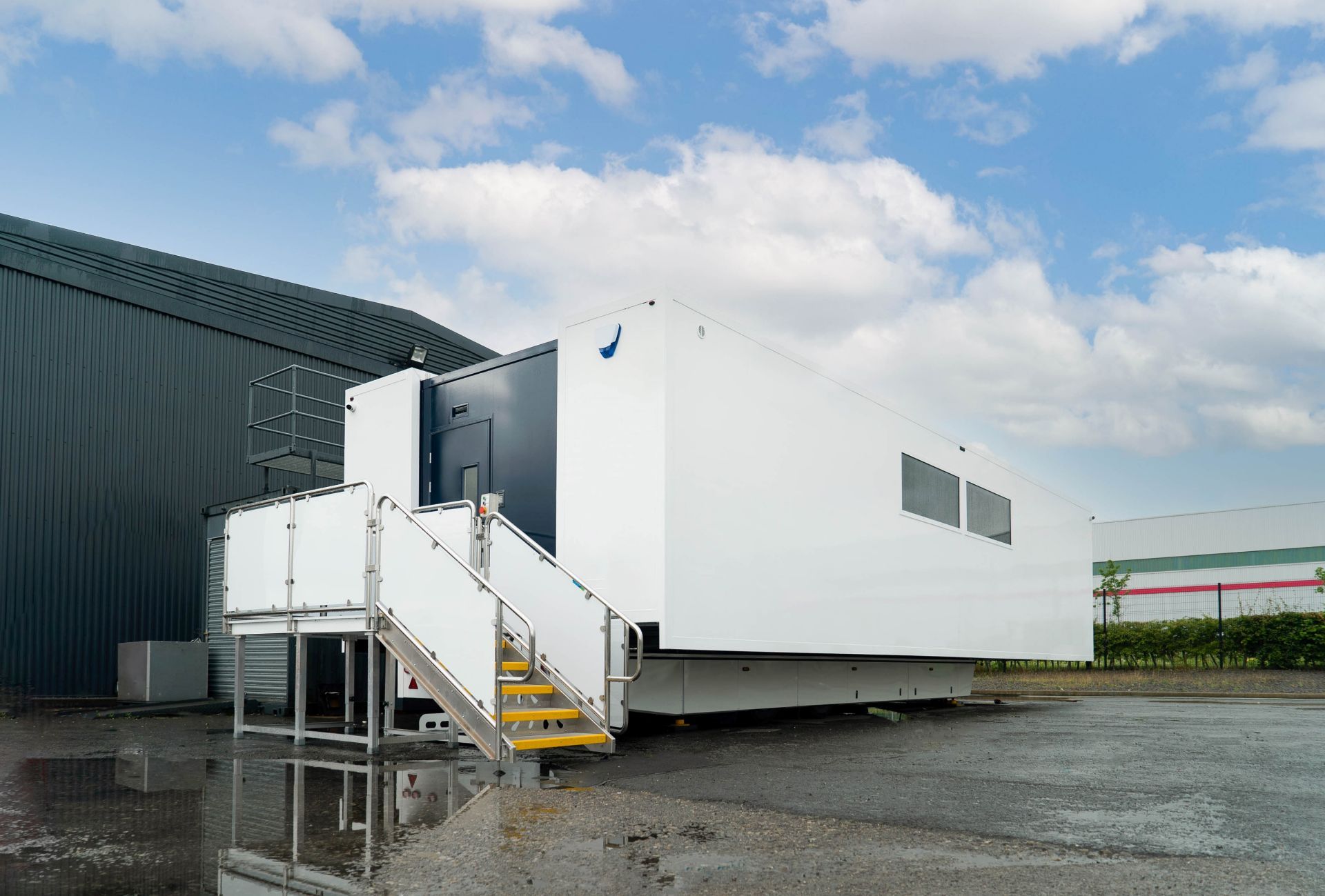

See the unit outside.

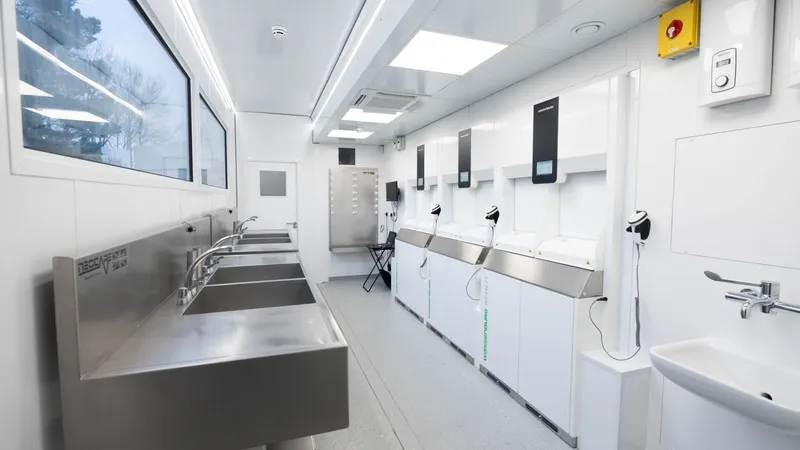

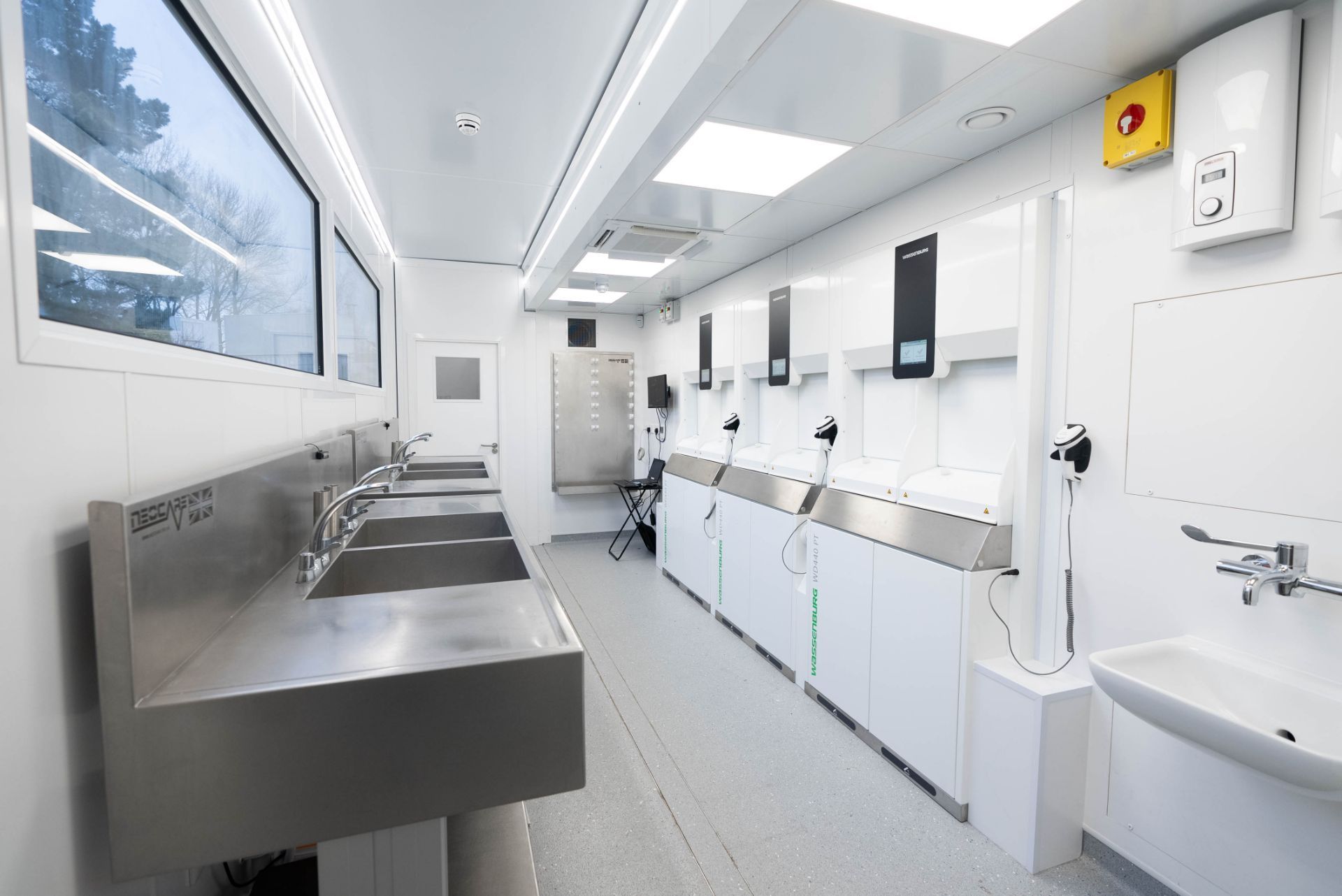

Explore the workspace inside.
The unit in detail.
The connections made clear.
- Application
- Endoscope reprocessing; designed for intensive daily use
- Processing capacity
- Up to 180 endoscopes per day
- Dirty utility
- Separate soiled-return area; negative air pressure
- Clean utility
- Separate reprocessing and storage area; positive air pressure
- Air handling
- 10 air changes per hour throughout clinical areas
- Reception
- Scope collection and drop-off
- Storage
- Dedicated chemical and consumables storage
- Staff facilities
- Private staff rest room
- Electrical supply
- 2 × 125 A three-phase connections
- Water supply
- 22 mm feed pipework
- Drainage
- 2 × 110 mm outlets
- Plant room
- Internal technical machinery and filtration systems
- Connectivity
- Telephone line connection for data/communication
- Maintenance
- Cantel Gold Service PPM package listed in brochure; confirm current coverage
- Availability
- 4 units listed; subject to prior sale
4 units listed.
June 2026 brochure listing; confirm current availability.
